厂家型号	煤安型号	工作扭矩	最大扭矩	方头驱动	螺栓能⼒	空载转速	进气口	耗气量	总长	重量
厂家型号	煤安型号	N.m @6bar	N.m	inch	mm	rpm	inch	m3/min	mm	kg
ZCQ-800P	JCQHS-850	800	1000	1/2"	M18	8500	1/4"	0.15	175	1.7
ZCQ-1000P	JCQHS-1050	1000	1250	1/2"	M22	8000	1/4"	0.16	180	1.8
ZCQ-1600P	JCQHS-1650	1600	2000	3/4"	M30	7000	3/8"	0.20	360	3.2
ZCQ-2200P	JCQHS-2250	2200	2700	1"	M36	5500	1/2"	0.21	425	6.5
ZCQ-2800LP	JCQHS-2850	2800	3100	1"	M38	5500	1/2"	0.22	635	7.5
ZCQ-3300P	JCQHS-3300	3300	3800	1"	M42	3600	1/2"	0.31	398	10.5
ZCQ-3300LP	JCQHS-3300	3300	3800	1"	M42	3600	1/2"	0.31	550	11.5
ZCQ-4200P	JCQHS-4200	4200	5000	1-1/2"	M50	3500	1/2"	0.8	390	12
ZCQ-5000LP		5000	6000	1-1/2"	M54	3300	1/2"	1.2	600	14

1/2'' 合金套筒			3/4'' 合金套筒			1'' 合金套筒
长度38mm	长度78mm	规格mm	长度54mm	长度78mm	规格mm	长度80mm	规格mm
ZC3-08	ZC3-08L	8	ZC4-17	ZC4-17L	17	ZC5-17	17
ZC3-09	ZC3-09L	9	ZC4-18	ZC4-18L	18	ZC5-18	18
ZC3-10	ZC3-10L	10	ZC4-19	ZC4-19L	19	ZC5-19	19
ZC3-11	ZC3-11L	11	ZC4-20	ZC4-20L	20	ZC5-20	20
ZC3-12	ZC3-12L	12	ZC4-21	ZC4-21L	21	ZC5-21	21
ZC3-13	ZC3-13L	13	ZC4-22	ZC4-22L	22	ZC5-22	22
ZC3-14	ZC3-14L	14	ZC4-23	ZC4-23L	23	ZC5-23	23
ZC3-15	ZC3-15L	15	ZC4-24	ZC4-24L	24	ZC5-24	24
ZC3-16	ZC3-16L	16	ZC4-25	ZC4-25L	25	ZC5-25	25
ZC3-17	ZC3-17L	17	ZC4-26	ZC4-26L	26	ZC5-26	26
ZC3-18	ZC3-18L	18	ZC4-27	ZC4-27L	27	ZC5-27	27
ZC3-19	ZC3-19L	19	ZC4-28	ZC4-28L	28	ZC5-28	28
ZC3-20	ZC3-20L	20	ZC4-29	ZC4-29L	29	ZC5-29	29
ZC3-21	ZC3-21L	21	ZC4-30	ZC4-30L	30	ZC5-30	30
ZC3-22	ZC3-22L	22	ZC4-32	ZC4-32L	32	ZC5-31	31
ZC3-23	ZC3-23L	23	ZC4-33	ZC4-33L	33	ZC5-32	32
ZC3-24	ZC3-24L	24	ZC4-34	ZC4-34L	34	ZC5-33	33
ZC3-25	ZC3-25L	25	ZC4-35	ZC4-35L	35	ZC5-34	34
ZC3-26	ZC3-26L	26	ZC4-36	ZC4-36L	36	ZC5-35	35
ZC3-27	ZC3-27L	27	ZC4-38	ZC4-38L	38	ZC5-36	36
ZC3-28	ZC3-28L	28	ZC4-40	ZC4-40L	40	ZC5-38	38
ZC3-29	ZC3-29L	29	ZC4-41	ZC4-41L	41	ZC5-40	40
ZC3-30	ZC3-30L	30	ZC4-42	ZC4-42L	42	ZC5-41	41
ZC3-32	ZC3-32L	32	ZC4-43	ZC4-43L	43	ZC5-42	42
ZC3-33	ZC3-33L	33	ZC4-44	ZC4-44L	44	ZC5-43	43
ZC3-34	ZC3-34L	34	ZC4-45	ZC4-45L	45	ZC5-44	44
ZC3-35	ZC3-35L	35	ZC4-46	ZC4-46L	46	ZC5-45	45
ZC3-36	ZC3-36L	36	ZC4-48	ZC4-48L	48	ZC5-46	46
ZC3-38	ZC3-38L	38	ZC4-50	ZC4-50L	50	ZC5-47	47
ZC3-41	ZC3-41L	41	ZC4-51	ZC4-51L	51	ZC5-48	48
ZC3-10K	10件套标准款10-19mm		ZC4-52	ZC4-52L	52	ZC5-50	50
ZC3-12K	12件套标准款10/12-19/21/22/24mm		ZC4-54	ZC4-54L	54	ZC5-52	52
ZC3-20K	20件套：标准款10/12-17/19/21/22mm，加长款10/12/13/14/16/17/19/21/22/24mm		ZC4-55	ZC4-55L	55	ZC5-53	53
			ZC4-56	ZC4-56L	56	ZC5-55	55
			ZC4-57	ZC4-57L	57	ZC5-56	56
			ZC4-60	ZC4-60L	60	ZC5-57	57
			ZC4-63	ZC4-63L	63	ZC5-58	58
			ZC4-65	ZC4-65L	65	ZC5-60	60
			ZC4-70	ZC4-70L	70	ZC5-62	62
			ZC4-8K	8件套标准款26/27/29/30/32/35/36/38mm		ZC5-63	63
			ZC4-20K	20件套标准款17/19/21/22/24/27/30 /32/33/34/35/36/38/41/42/43/45/46/48/50		ZC5-65	65
						ZC5-68	68
						ZC5-70	70
						ZC5-72	72
						ZC5-75	75
						ZC5-80	80
						ZC5-85	85
						ZC5-90	90
						ZC5-95	95
						ZC5-100	100
						ZC5-5K	5件套标准款23/27/30/34/38mm，长度80mm
						ZC5-10K	10件套标准款24/27/30/32/33/34/36 /38/41/46mm，长度80mm
						ZC5-12K	12件套标准款24/26/27/30/32/33/34 /35/36/38/41/46mm，长度88mm

Company/Name*

Please complete this required field.

Email*

Please complete this required field.
Country:*

Please complete this required field.

ROSIT GmbH is committed to safeguarding your privacy and will use your personal information solely to manage your account and provide the products and services you have requested from us. From time to time, we may wish to contact you about our products, services, or other content we think you might find interesting.

I agree to receive other communications from ROSIT GmbH.

虎式安全装备，防爆工具，气动工具

CN

产品中心

钻孔工具

切割工具

装配工具

表面及锤铲工具

吊装流体设备

高压工具

媒体库

技术支持

关于虎式

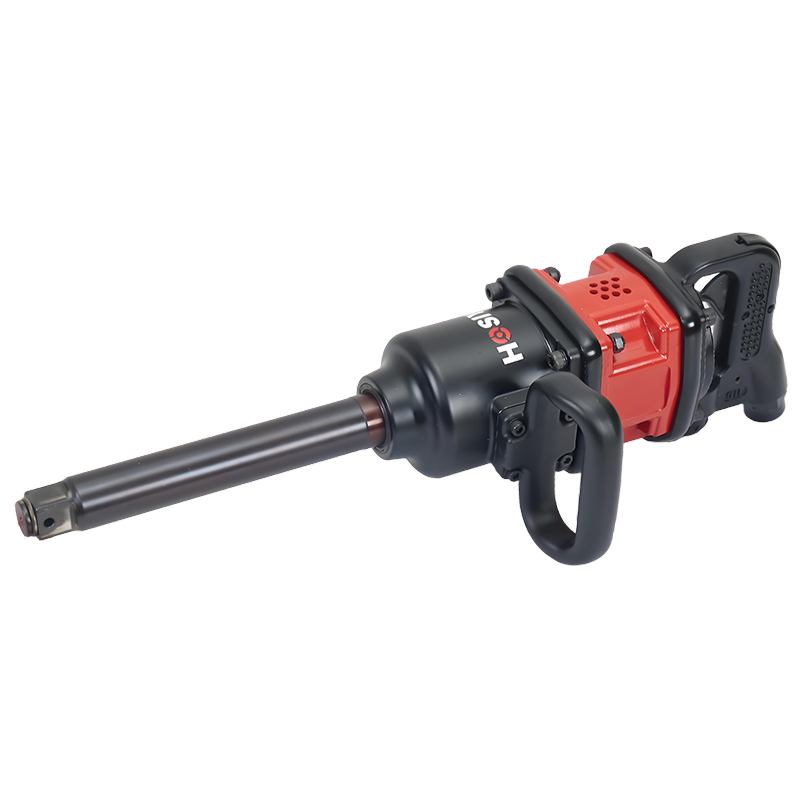

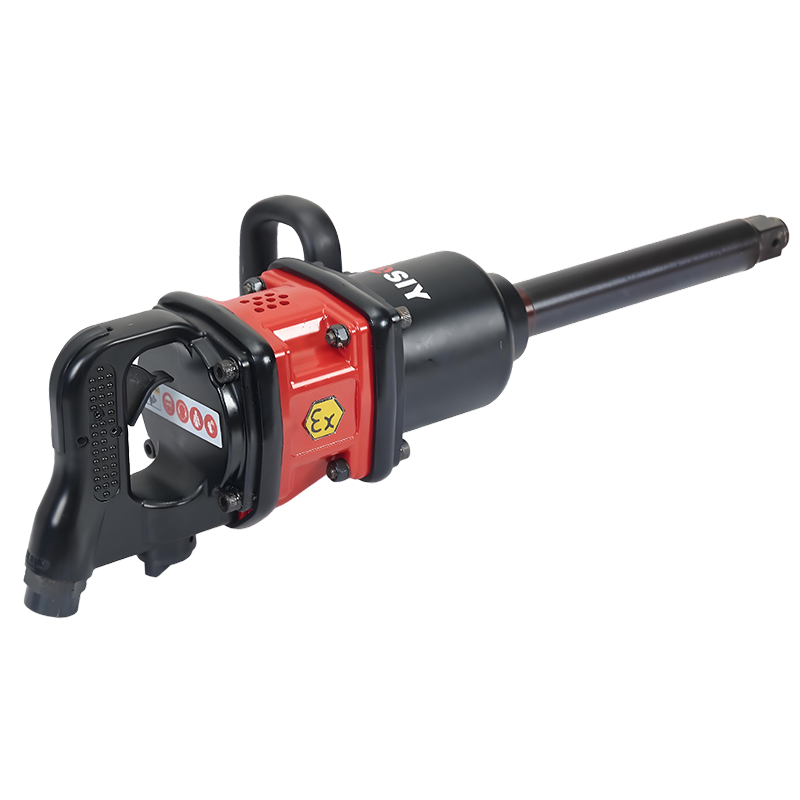

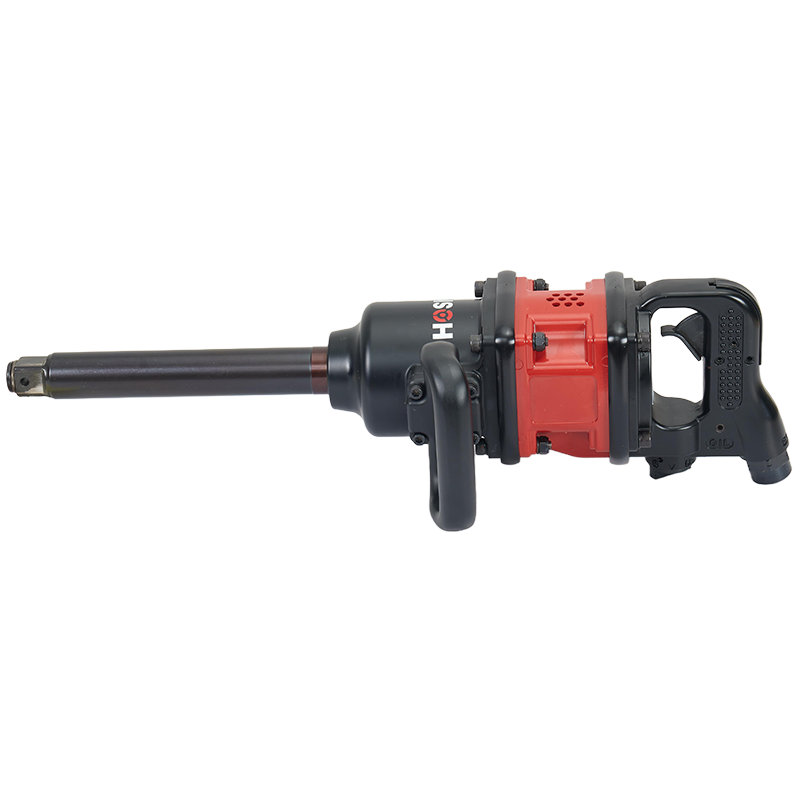

ZCQ-3300LP矿用螺母安装器（超轻系列）
