ZCQ-700气动冲击扳手-HOSIY虎式安全装备-Invented forSafe 科技守护安全

产品信息

型号规格
下载
配件

比较型号

比较

厂家型号	最大扭矩	扭矩范围	方头驱动	螺栓能⼒	空载转速	进气口	耗气量	总长	重量
厂家型号	N.m	N.m	inch	mm	rpm	inch	m3/min	mm	kg
ZCQ-700	700	600-850	1/2"	M18	7500	1/4"	0.12	170	2
ZCQ-900	900	750-1050	1/2"	M20	7000	1/4"	0.14	180	2.2
ZCQ-1500	1500	1000-1800	3/4"	M28	6000	3/8"	0.20	220	3.7
ZCQ-2000	2000	2000-2600	1"	M32	5000	1/2"	0.35	320	7.5
ZCQ-2300	2300	2400-3000	1"	M36	4500	1/2"	0.4	470	8.5
ZCQ-2700L	2700	2400-3000	1"	M38	4500	1/2"	0.4	470	9.5
ZCQ-3500	3500	3200-3800	1"	M45	3500	1/2"	0.45	430	15
ZCQ-3500L	3500	3200-3800	1"	M45	3500	1/2"	0.45	580	16
ZCQ-4000	4000	3500-4500	1"	M50	3000	1/2"	0.50	660	18
ZCQ-6000L	6000	5000-6500	1"	M54	2800	1/2"	0.55	440	20

1/2'' 合金套筒			3/4'' 合金套筒			1'' 合金套筒
长度38mm	长度78mm	规格mm	长度54mm	长度78mm	规格mm	长度80mm	规格mm
ZC3-08	ZC3-08L	8	ZC4-17	ZC4-17L	17	ZC5-17	17
ZC3-09	ZC3-09L	9	ZC4-18	ZC4-18L	18	ZC5-18	18
ZC3-10	ZC3-10L	10	ZC4-19	ZC4-19L	19	ZC5-19	19
ZC3-11	ZC3-11L	11	ZC4-20	ZC4-20L	20	ZC5-20	20
ZC3-12	ZC3-12L	12	ZC4-21	ZC4-21L	21	ZC5-21	21
ZC3-13	ZC3-13L	13	ZC4-22	ZC4-22L	22	ZC5-22	22
ZC3-14	ZC3-14L	14	ZC4-23	ZC4-23L	23	ZC5-23	23
ZC3-15	ZC3-15L	15	ZC4-24	ZC4-24L	24	ZC5-24	24
ZC3-16	ZC3-16L	16	ZC4-25	ZC4-25L	25	ZC5-25	25
ZC3-17	ZC3-17L	17	ZC4-26	ZC4-26L	26	ZC5-26	26
ZC3-18	ZC3-18L	18	ZC4-27	ZC4-27L	27	ZC5-27	27
ZC3-19	ZC3-19L	19	ZC4-28	ZC4-28L	28	ZC5-28	28
ZC3-20	ZC3-20L	20	ZC4-29	ZC4-29L	29	ZC5-29	29
ZC3-21	ZC3-21L	21	ZC4-30	ZC4-30L	30	ZC5-30	30
ZC3-22	ZC3-22L	22	ZC4-32	ZC4-32L	32	ZC5-31	31
ZC3-23	ZC3-23L	23	ZC4-33	ZC4-33L	33	ZC5-32	32
ZC3-24	ZC3-24L	24	ZC4-34	ZC4-34L	34	ZC5-33	33
ZC3-25	ZC3-25L	25	ZC4-35	ZC4-35L	35	ZC5-34	34
ZC3-26	ZC3-26L	26	ZC4-36	ZC4-36L	36	ZC5-35	35
ZC3-27	ZC3-27L	27	ZC4-38	ZC4-38L	38	ZC5-36	36
ZC3-28	ZC3-28L	28	ZC4-40	ZC4-40L	40	ZC5-38	38
ZC3-29	ZC3-29L	29	ZC4-41	ZC4-41L	41	ZC5-40	40
ZC3-30	ZC3-30L	30	ZC4-42	ZC4-42L	42	ZC5-41	41
ZC3-32	ZC3-32L	32	ZC4-43	ZC4-43L	43	ZC5-42	42
ZC3-33	ZC3-33L	33	ZC4-44	ZC4-44L	44	ZC5-43	43
ZC3-34	ZC3-34L	34	ZC4-45	ZC4-45L	45	ZC5-44	44
ZC3-35	ZC3-35L	35	ZC4-46	ZC4-46L	46	ZC5-45	45
ZC3-36	ZC3-36L	36	ZC4-48	ZC4-48L	48	ZC5-46	46
ZC3-38	ZC3-38L	38	ZC4-50	ZC4-50L	50	ZC5-47	47
ZC3-41	ZC3-41L	41	ZC4-51	ZC4-51L	51	ZC5-48	48
ZC3-10K	10件套标准款10-19mm		ZC4-52	ZC4-52L	52	ZC5-50	50
ZC3-12K	12件套标准款10/12-19/21/22/24mm		ZC4-54	ZC4-54L	54	ZC5-52	52
ZC3-20K	20件套：标准款10/12-17/19/21/22mm，加长款10/12/13/14/16/17/19/21/22/24mm		ZC4-55	ZC4-55L	55	ZC5-53	53
			ZC4-56	ZC4-56L	56	ZC5-55	55
			ZC4-57	ZC4-57L	57	ZC5-56	56
			ZC4-60	ZC4-60L	60	ZC5-57	57
			ZC4-63	ZC4-63L	63	ZC5-58	58
			ZC4-65	ZC4-65L	65	ZC5-60	60
			ZC4-70	ZC4-70L	70	ZC5-62	62
			ZC4-8K	8件套标准款26/27/29/30/32/35/36/38mm		ZC5-63	63
			ZC4-20K	20件套标准款17/19/21/22/24/27/30 /32/33/34/35/36/38/41/42/43/45/46/48/50		ZC5-65	65
						ZC5-68	68
						ZC5-70	70
						ZC5-72	72
						ZC5-75	75
						ZC5-80	80
						ZC5-85	85
						ZC5-90	90
						ZC5-95	95
						ZC5-100	100
						ZC5-5K	5件套标准款23/27/30/34/38mm，长度80mm
						ZC5-10K	10件套标准款24/27/30/32/33/34/36 /38/41/46mm，长度80mm
						ZC5-12K	12件套标准款24/26/27/30/32/33/34 /35/36/38/41/46mm，长度88mm

Company/Name*

Please complete this required field.

Email*

Please complete this required field.
Country:*

Please complete this required field.

ROSIT GmbH is committed to safeguarding your privacy and will use your personal information solely to manage your account and provide the products and services you have requested from us. From time to time, we may wish to contact you about our products, services, or other content we think you might find interesting.

I agree to receive other communications from ROSIT GmbH.

虎式安全装备，防爆工具，气动工具

CN

产品中心

钻孔工具

切割工具

装配工具

表面及锤铲工具

吊装流体设备

高压工具

媒体库

技术支持

关于虎式

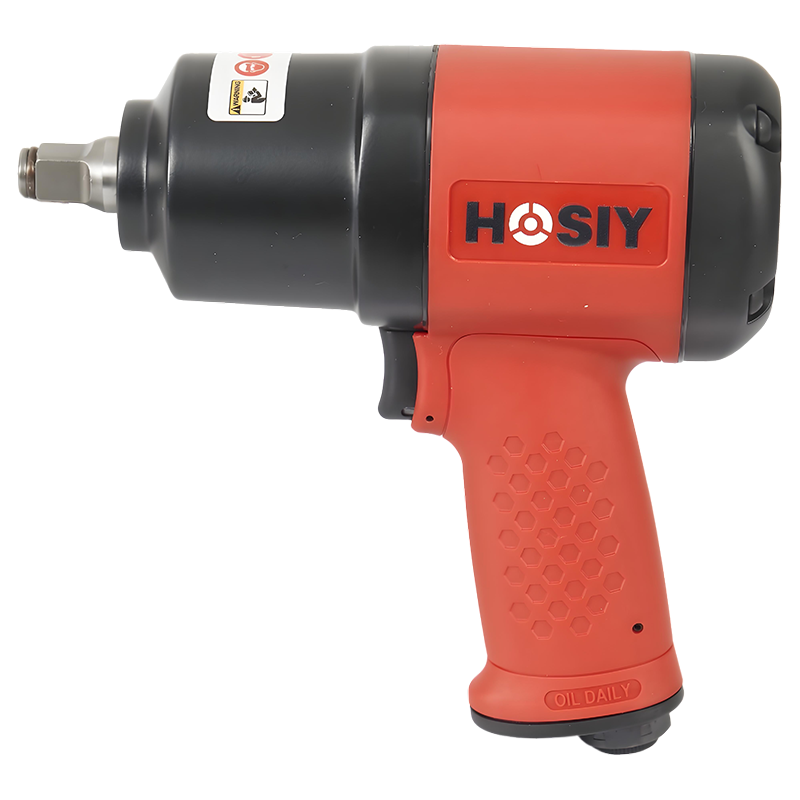

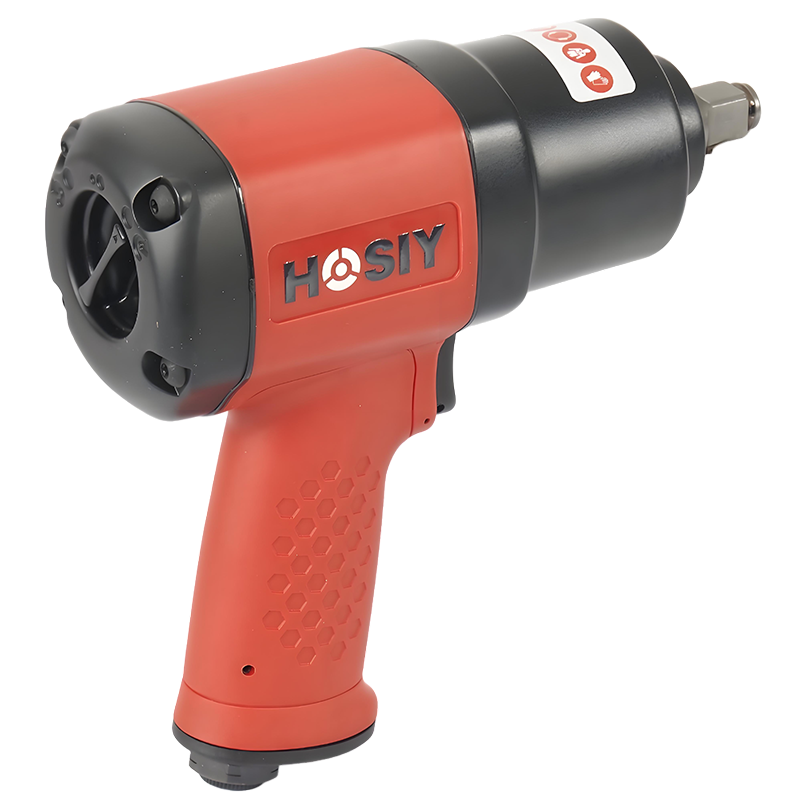

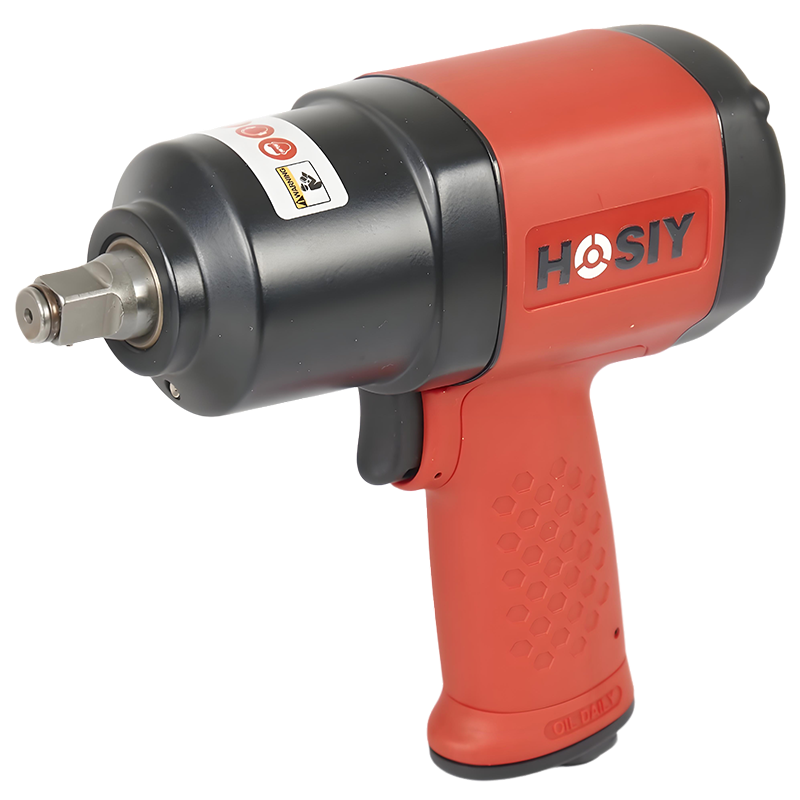

ZCQ-700气动冲击扳手
